This is a nested ring box made for - Party - our Golden Retriever who recently passed away. The box was CNC cut from Oak and Maple and then glued, sanded, and hand finished. It appears to be a solid laminated block - but the ring configuration provides an interior compartment.
VCarve Pro Design Files
Below are the design files for two variations of the Nested Ring Box.  The larger version is sized to accommodate a medium / large dog and the smaller version is sized to accommodate a small / medium dog.  You can adjust the interior volume by adding or removing mid ring layers.

The Top and Mid Ring parts require a machining pass on both the top and bottom or each part (2-sided machining).  The bottom can be machined from a single side.

You'll need:
For the larger version:
3/4 inch stock for each layer - blank size 12" x 7.25" (for as many layers as required)

For the smaller version:
3/4 inch stock for each layer - blank size 12" x 5.5" (for as many layers as required)

Nested Ring Box - larger version - 9.5" x 6.5"
Urn_Party_2_Top.crv
Urn_Party_2_Mid_Ring.crv
Urn_Party_2_Bottom.crv

Nested Ring Box - smaller version - 9" x 4.5"
Urn_55_2_Top.crv
Urn_55_2_Mid_Ring.crv
Urn_55_2_Bottom.crv



Below are preview images of the machine paths on the Top and Bottom of each part.

Nested Ring Box - Bottom - Side 1

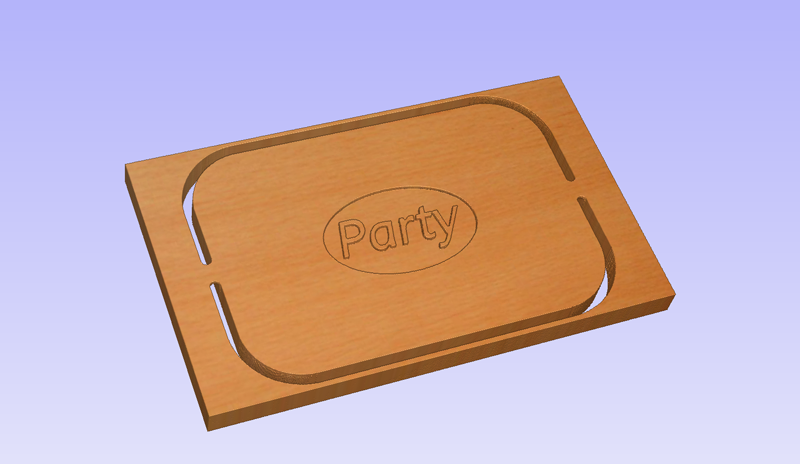

Nested Ring Box - Top - Side 1

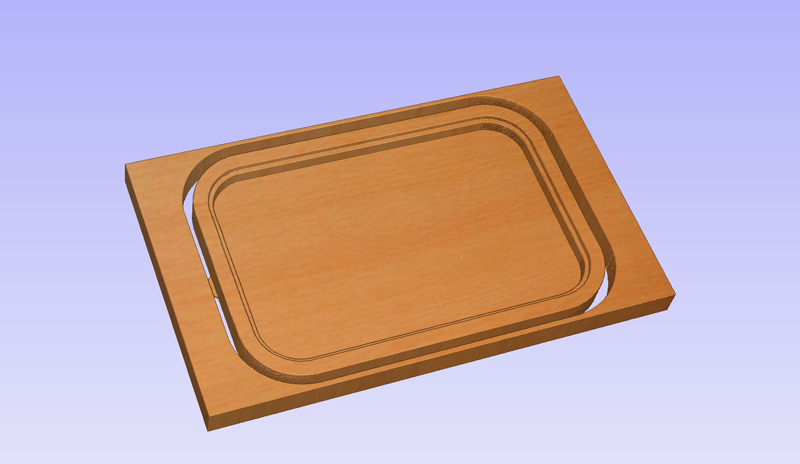

Nested Ring Box - Top - Side 2
Nested Ring Box - Top - Side 2

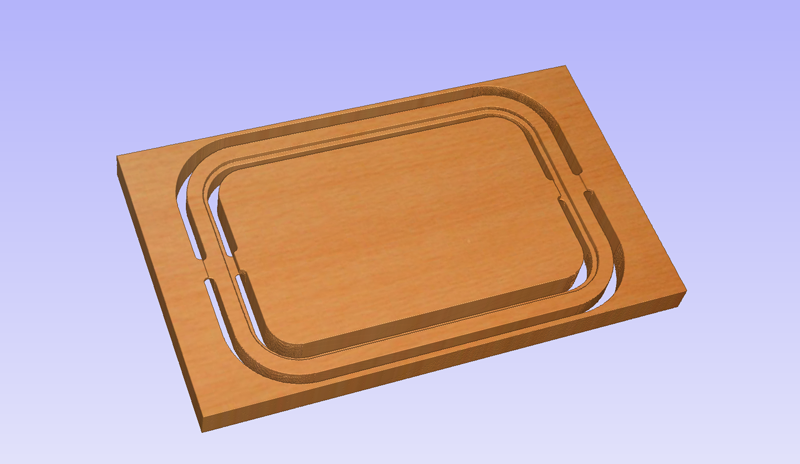

Nested Ring Box - Mid Ring - Side 1
Nested Ring Box-  Mid Ring - Side 1

Nested Ring Box - Mid Ring - Side 2
Nested Ring Box-  Mid Ring - Side 2

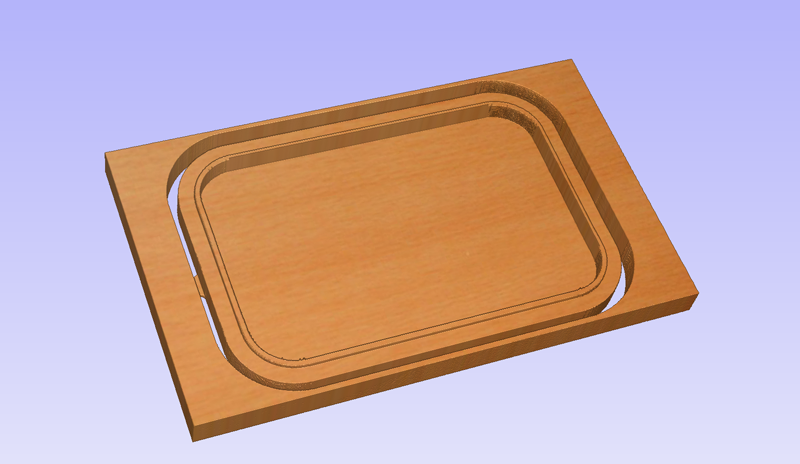

Nested Ring Box - Bottom - Side 2
Nested Ring Box - Bottom - Side 2
